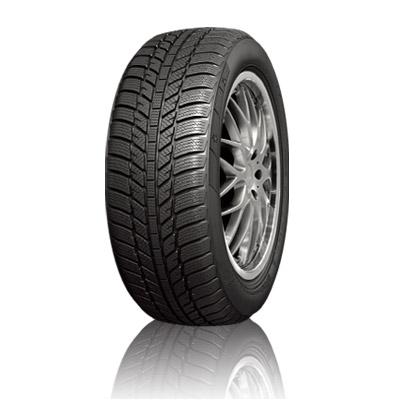

PT62
| Feature： |
| Special tread rubber compound and complex grooves maintain the softness, and an excellent grip and fraction ensure safety in cold and snowy conditions. |  |
 |
■Safety
Special tread formula with silica helps tire to remain softness in low temperature, ensures stable driving and braking forces.
■■Economy
Silica compound and low gravity center help to reduce rolling resistance, hydrocarbon emission and fuel consumption.
■Handling
Reinforced center rib assures better handling performance and high speed property. Multi-kerfs enhance grip and braking forces in snow and ice eld.
■Snow
Gradually widening lateral grooves improve self-cleaning and draining abilities. Zigzagged longitudinal grooves enhance cleaning ability in snow feld.
|
| SIZE | LI | NOTE | SI | Overall Diameter | Section Width | Stardard Rim | Tread Depth | Max. Load |
Max.Pressure | |||
| mm | inch | mm | inch | mm | inch(32") | kg | kpa | |||||
| 155/70R13 | 75 | T | 548 | 21.6 | 157 | 6.2 | 4.50B | 8.5 | 11 | 387 | 300 | |
| 165/70R13 | 79 | T/H | 562 | 22.1 | 170 | 6.7 | 5.00B | 8.5 | 11 | 437 | 300 | |
| 165/70R13 | 83 | XL | T | 562 | 22.1 | 170 | 6.7 | 5.00B | 8.5 | 11 | 487 | 340 |
| 175/70R13 | 82 | T/H | 576 | 22.7 | 177 | 7.0 | 5.00B | 8.5 | 11 | 475 | 300 | |
| 175/70R13 | 86 | XL | T | 576 | 22.7 | 177 | 7.0 | 5.00B | 8.5 | 11 | 530 | 340 |
| 155/65R13 | 73 | T | 532 | 20.9 | 157 | 6.2 | 4.50B | 8.5 | 11 | 365 | 300 | |
| 165/70R14 | 81 | T/H | 588 | 23.1 | 170 | 6.7 | 5J | 8.5 | 11 | 462 | 300 | |
| 165/70R14 | 85 | XL | T | 588 | 23.1 | 170 | 6.7 | 5J | 8.5 | 11 | 515 | 340 |
| 175/70R14 | 84 | T | 602 | 23.7 | 177 | 7.0 | 5J | 8.5 | 11 | 500 | 300 | |
| 175/70R14 | 88 | XL | T | 602 | 23.7 | 177 | 7.0 | 5J | 8.5 | 11 | 560 | 340 |
| 185/65R14 | 90 | XL | T | 596 | 23.5 | 189 | 7.4 | 5½J | 8.7 | 11 | 600 | 340 |
| 185/70R14 | 88 | T/H | 616 | 24.3 | 189 | 7.4 | 5½J | 8.7 | 11 | 560 | 300 | |
| 185/70R14 | 92 | XL | T/H | 616 | 24.3 | 189 | 7.4 | 5½J | 8.7 | 11 | 630 | 340 |
| 195/70R14 | 91 | T/H | 630 | 24.8 | 201 | 7.9 | 6J | 8.7 | 11 | 615 | 300 | |
| 195/70R14 | 95 | XL | T | 630 | 24.8 | 201 | 7.9 | 6J | 8.7 | 11 | 690 | 340 |
| 205/70R14 | 98 | XL | T | 644 | 25.4 | 209 | 8.2 | 6J | 8.7 | 11 | 750 | 340 |
| 165/65R14 | 79 | T | 570 | 22.4 | 170 | 6.7 | 5J | 8.5 | 11 | 437 | 300 | |
| 165/65R14 | 83 | XL | T | 570 | 22.4 | 170 | 6.7 | 5J | 8.5 | 11 | 487 | 340 |
| 175/65R14 | 82 | H | 584 | 23.0 | 177 | 7.0 | 5J | 8.7 | 11 | 475 | 300 | |
| 175/65R14 | 86 | XL | T | 584 | 23.0 | 177 | 7.0 | 5J | 8.7 | 11 | 530 | 340 |
| 185/65R14 | 86 | T | 596 | 23.5 | 189 | 7.4 | 5½J | 8.7 | 11 | 530 | 300 | |
| 185/60R14 | 82 | T | 578 | 22.8 | 189 | 7.4 | 5½J | 8.5 | 11 | 475 | 300 | |
| 195/60R14 | 86 | T | 590 | 23.2 | 201 | 7.9 | 6J | 8.5 | 11 | 530 | 300 | |
| 175/65R15 | 84 | H | 609 | 24.0 | 177 | 7.0 | 5J | 8.7 | 11 | 500 | 300 | |
| 175/65R15 | 88 | XL | H | 609 | 24.0 | 177 | 7.0 | 5J | 8.7 | 11 | 560 | 340 |
| 185/65R15 | 92 | XL | T | 621 | 24.4 | 189 | 7.4 | 5½J | 8.7 | 11 | 630 | 340 |
| 185/65R15 | 88 | T | 621 | 24.4 | 189 | 7.4 | 5½J | 8.7 | 11 | 560 | 300 | |
| 195/65R15 | 91 | T | 635 | 25.0 | 201 | 7.9 | 6J | 8.7 | 11 | 615 | 300 | |
| 195/65R15 | 95 | XL | T | 635 | 25.0 | 201 | 7.9 | 6J | 8.7 | 11 | 690 | 340 |
| 205/65R15 | 94 | H | 647 | 25.5 | 209 | 8.2 | 6J | 8.5 | 11 | 670 | 300 | |
| 215/65R15 | 96 | H | 661 | 26.0 | 221 | 8.7 | 6½J | 8.7 | 11 | 710 | 300 | |
| 185/60R15 | 84 | H | 603 | 23.7 | 189 | 7.4 | 5½J | 8.5 | 11 | 500 | 300 | |
| 185/60R15 | 88 | XL | T/H /V | 603 | 23.7 | 189 | 7.4 | 5½J | 8.5 | 11 | 560 | 340 |
| 195/60R15 | 88 | T | 615 | 24.2 | 201 | 7.9 | 6J | 8.5 | 11 | 560 | 300 | |
| 205/60R15 | 91 | H | 627 | 24.7 | 209 | 8.2 | 6J | 8.7 | 11 | 615 | 300 | |
| 185/55R15 | 82 | V | 585 | 23.0 | 194 | 7.6 | 6J | 8.5 | 11 | 475 | 300 | |
| 185/55R15 | 86 | XL | H/V | 585 | 23.0 | 194 | 7.6 | 6J | 8.5 | 11 | 530 | 340 |
| 195/55R15 | 85 | H | 595 | 23.4 | 201 | 7.9 | 6J | 8.5 | 11 | 515 | 300 | |
| 195/50R15 | 82 | H | 577 | 22.7 | 201 | 7.9 | 6J | 8.5 | 11 | 475 | 300 | |
| 195/50R15 | 86 | XL | H | 577 | 22.7 | 201 | 7.9 | 6J | 8.5 | 11 | 530 | 340 |
| 205/65R16 | 95 | H | 672 | 26.5 | 209 | 8.2 | 6J | 8.7 | 11 | 690 | 300 | |
| 215/65R16 | 102 | XL | H | 686 | 27.0 | 221 | 8.7 | 6½J | 8.8 | 11 | 850 | 340 |
| 215/65R16 | 98 | H | 686 | 27.0 | 221 | 8.7 | 6½J | 8.8 | 11 | 750 | 300 | |
| 205/60R16 | 92 | H | 652 | 25.7 | 209 | 8.2 | 6J | 8.7 | 11 | 630 | 300 | |
| 205/60R16 | 96 | XL | H | 652 | 25.7 | 209 | 8.2 | 6J | 8.7 | 11 | 710 | 340 |
| 215/60R16 | 95 | H | 664 | 26.1 | 221 | 8.7 | 6½J | 8.8 | 11 | 690 | 300 | |
| 215/60R16 | 99 | XL | H | 664 | 26.1 | 221 | 8.7 | 6½J | 8.8 | 11 | 775 | 340 |
| 225/60R16 | 98 | H | 676 | 26.6 | 228 | 9.0 | 6½J | 8.7 | 11 | 750 | 300 | |
| 195/55R16 | 87 | H | 620 | 24.4 | 201 | 7.9 | 6J | 8.5 | 11 | 545 | 300 | |
| 205/55R16 | 91 | H | 632 | 24.9 | 214 | 8.4 | 6½J | 8.5 | 11 | 615 | 300 | |
| 205/55R16 | 94 | XL | H | 632 | 24.9 | 214 | 8.4 | 6½J | 8.5 | 11 | 670 | 340 |
| 215/55R16 | 97 | XL | H | 642 | 25.3 | 226 | 8.9 | 7J | 8.7 | 11 | 730 | 340 |
| 225/55R16 | 99 | XL | H | 654 | 25.7 | 233 | 9.2 | 7J | 8.7 | 11 | 775 | 340 |
| 205/50R16 | 87 | H | 612 | 24.1 | 214 | 8.4 | 6½J | 8.7 | 11 | 545 | 300 | |
| 195/45R16 | 84 | XL | H | 582 | 22.9 | 195 | 7.7 | 6½J | 8.5 | 11 | 500 | 340 |
| 205/45R16 | 87 | XL | H | 590 | 23.2 | 206 | 8.1 | 7J | 8.7 | 11 | 545 | 340 |
| 245/70R16 | 107 | T | 750 | 29.5 | 248 | 9.8 | 7J | 8.7 | 11 | 975 | 300 | |
